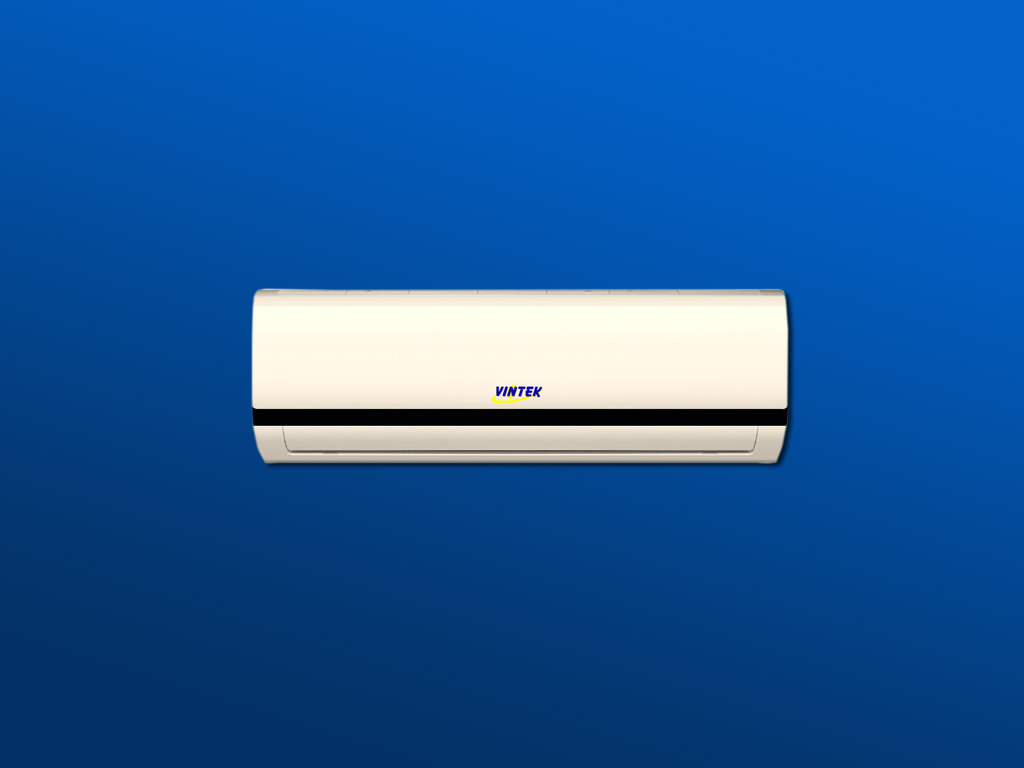

R410A VBKF Series Cooling Only

R410A VBKF Series Cooling Only, elegant and good looking, this AC certainly adds to the beauty of your home. The inner moulding panel gives this AC the extra shine and enhances its beauty, giving your room a designer look. And being 3 star rated AC, it helps you save on your electricity bills too.

What’s more, these ACs deliver faster cooling and come with the latest eco-friendly, which have zero ozone depleting substances. The 3 Star VWKF – Series is available in the following tonnages 1 TR and 1.5 TR.

Category:
FeaturesElaborate designing, highly efficient compressor

Adopted world famous compressor such as GMCC, SANYO and Toshiba etc, enable high efficiency cooling and long service for air conditioner unit.

FeaturesSaw – teeth fan wheel design for noise reduction

The latest model adopts the air flow blades in the shape of saw teeth, which greatly reduces the vibration noises at end of the vortex and the operation noises of the outdoor unit.

FeaturesMulti-folds evaporator

Multi-fold evaporator in indoor unit could enlarge the expel heat are enhance the cooling efficiency, also make the unit compact in size.

FeaturesHydrophilic film aluminum foil

Blue-solored hydrophilic alum foil in indoor unit that free from water contamination, which enhance the heat-exchange efficiency.

FeaturesSleep mode operation

Temperature gently rises or falls automatically to maintain comfortable room temperature and saves energy.

FeaturesIndependent de-humidifying

Independent dehumidify could lower water vapor in the room repaidly but do not effect cooling when dehumidifying.

FeaturesIntelligent defrosting

Defrosting fully controlled by micro processor to ensure the effective heating conditions.

FeaturesON/OFF by timers

The setting of timed switch ON/OFF can be made according to the end users needs.

FeaturesCorrugate high efficient filter screen

This super filter is easy to remove for cleaning highly effective in mold prevention and anti bacteria ensuring the healthy environment in the room.

FeaturesExtra quiet operation

Unique low noise design large diameter, straight line and low noise indoor / outdoor fan special duct design that unit in quiet operation.

FeaturesIntelligent control easy operation

Adopted intelligent central digital dynamic LED display indicate the operation status vividly the setting of timed switch on/off can be made according the end users needs.

FeaturesWide voltage design

Activation is possible within a voltage range of 170V~260V There is no need for using a voltage stabilizer where the voltage fluctuates.

FeaturesThree dimensional swinging pattern air delivery technology

Multi dimensional wind outlet function surrounded human body and wind reach to every room corner.

FeaturesDual air delivery plate for guiding direction of air delivery

Double louvers delivery wind up and down could avoid cooling human body directly.

FeaturesI feel

Unit automatically adjusts temperature according to sensed temperature.

FeaturesTurbo operation

To cool the room intensely.

FeaturesFixed and swing

Cool air is directed across the room when warm air is directed to the floor.

FeaturesDiagnosis displaying

Error code is displayed for fast and easy maintenance when a problem is developed.

FeaturesAuto clean

Turn off unit that contains this function when it is cooling or drying indoor fan would still operate in low speed to dry the inner components and parts. This action can remain unit clean and dry prevent mould growing and odor.

FeaturesAutomatic restart

If the power suddenly cuts OFF once the power supply resumes the automatic restart function allows the air conditioner to restart keeping the previous set up mode.

FeaturesSelf diagnosis and auto protection function

With this function, the errors will be detected by chips and displayed on the LEDs of the indoor unit and at the same time protect function is automatically energized.

Specification

Model VBKF-12GW VBKF-18GW VBKF-24GW
Power supply Ph-V-Hz 1P-220~240V/50Hz 1Ph / 220~240V/50Hz 1Ph-220-240V~50Hz
Cooling Capacity Btu/h 12000 18000 24000
Input W 1256 2029 2705
Rated current A 5.6 8.8 11.7
 EER W/W 3.20 3.2 3.15
Max. input consumption W 1500 2200 4000
Max. current A 9.2 12 20
Compressor Type   ROTARY ROTARY ROTARY
Indoor Motor Speed  (Hi/Mi/Lo) r/min 1150/950/800 1300 / 1100 / 800 1200/1100/950
Indoor air flow (Hi/Mi/Lo) m3/h  604 / 472 / 374 808 /657/535 1011/800/758
Noise level(Hi/Mi/Lo) dB(A)  40.0/ 33/27.8 43.8 /37/32.9 47.9/40/39.8
Unit dimension (W*H*D) mm 805x194x285 957x213x302 1040×220×327
Packing (W*H*D) mm 870x270x360 1035x295x380 1120x405x310
Gross weight Kg 11 14 17
Outdoor Motor Speed r/min 851 852 860
Noise level dB(A) 54 57 59
Unit dimension (W*H*D) mm 700x275x550 770x300x555 845x363x702
Packing   (W*H*D) mm 815x325x615 900x345x585 965x395x755
Gross weight Kg 29.1/31.4 34/36.9 46.8/50.1
Refrigerant type   R410A R410A R410A
Application area m2 16-23 24-35 32-47
